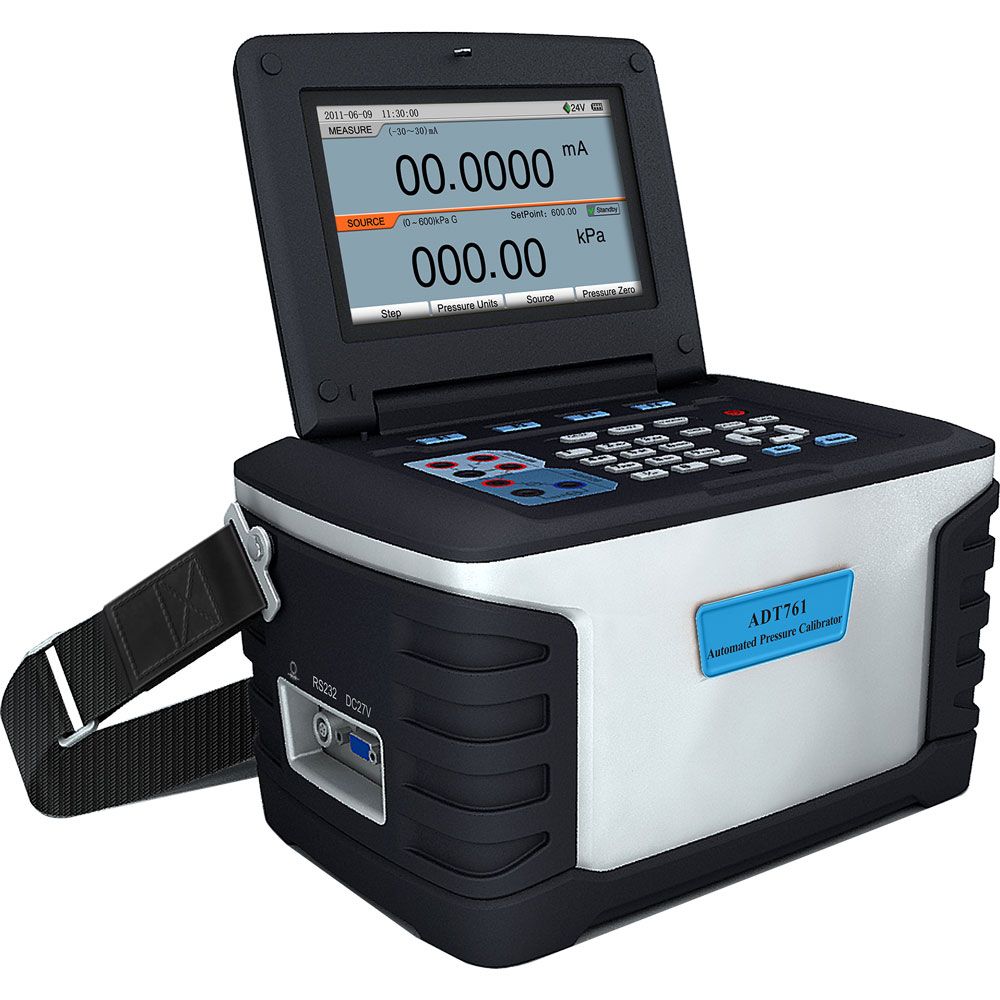

- Pressure generated by built-in pump and controlled automatically from 90% vacuum to max pressure
- Pressure measured with external pressure modules (ADT160 series) to 10,000 psi (700 bar)
- 0.02%FS
- Fully temperature compensated
- 0.005%FS
- Fully Automated pressure calibration
- Task preset and auto run
- Auto step
- User friendly interface
- Intuitive icon driven menu structure
- Measure mA or V with 0.01% RD 0.005%FS accuracy
- Source 0 to 22mA current
- 24 VDC loop power supply to pressure transmitter during test
- Automatic switch test
- Up to 30V misuse protection on any two sockets
- 7 LCD color screen (800X480)
- Task management capability
- Internal memory stores 120 tasks
- Download tasks and upload results
- Support HART instrumentation
- Rechargeable battery with up to 8 hours operation between charges
- Apply leak test to an external pressure system to determine the magnitude of pressure variations due to leaks
- Special design the pipeline layout to avoid possible blockage and leakage
- Only 12 lb
- NIST traceable calibration certificate included
>
Each Unit Includes
- External Pressure Manifold
- 110/220V External Power Adapter
- Chargeable Li-ion Battery
- Test Leads for Calibrator
- Short Circuit Cable
- Carrying Case for ADT761 Calibrator and Accessory
