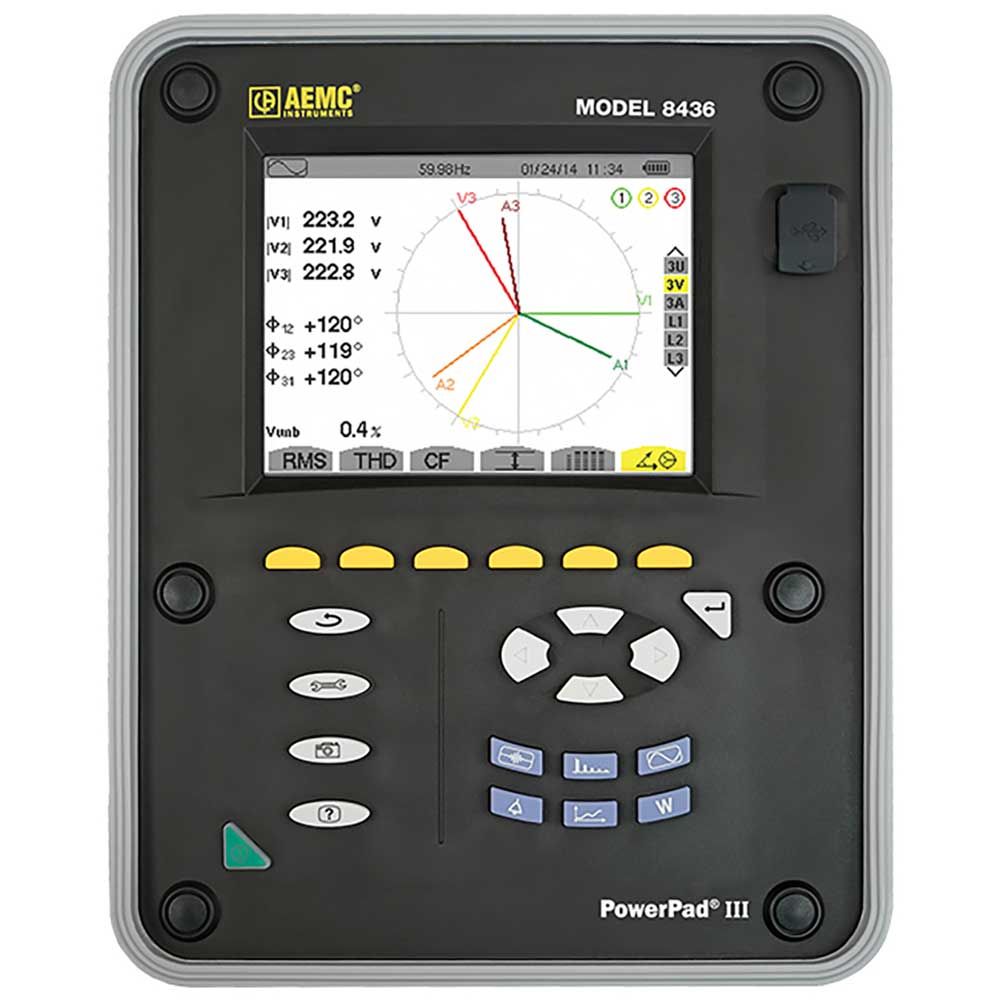

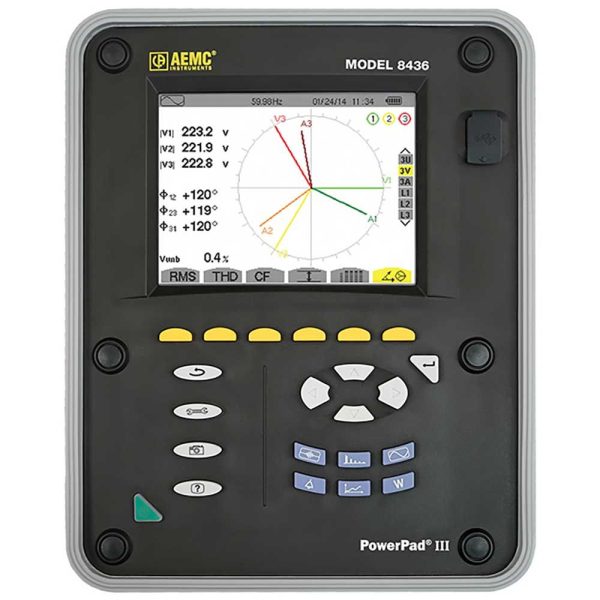

The PowerPad III Model 8436 is a three-phase power quality analyzer that is easy-to-use, compact and shock resistant. It enables technicians and engineers to measure and carry out diagnostics and power quality work on one-, two- or three- phase networks. Five voltage and four current inputs are provided. It is IEC 61000-4-30 Class B and safety rated to 600V CAT IV. It is rated IP67 when used with the flexible sensor Ampflex 196A.

Measurement of TRMS voltages up to 1000Vrms AC/DC for two-, three-, four- or five-wire systems
Measurement of TRMS currents up to 10,000Arms (sensor dependent)
65?s sample rate
Direct measurement of neutral current & voltage
Record and display trend data as fast as once per second for one month for up to 25 variables
Transient detection on all V and I inputs (up to 210)
Selectable PT and CT ratios
Inrush current measurement
Calculation of Crest Factors for V and A
Calculation of the K-Factor for transformers
Calculation of short and long term flicker and three-phase voltage unbalance
Measures harmonics (referenced to the fundamental or RMS value) for voltage, current or power, up to 50th harmonic
Displays of harmonic sequencing and direction and calculation of overall harmonics
Real-time display of phasor diagrams including values and phase angles
Measurement of active, reactive and apparent power per phase and their respective sum total
Calculation of power factor, displacement power factor and tangent factor
Recording, time stamping and characterization of disturbance (swells, sags and interruptions, exceedance of power and harmonic thresholds)
2GB internal Trend Recording memory, Alarm, Snapshot and Transient/Inrush memories are separate
Measurement of energy kVAh, kvarh & kWh
The Max and Min RMS measurements are calculated every half-period
Includes DataView® software for configuring, real-time display, analysis and report generation
