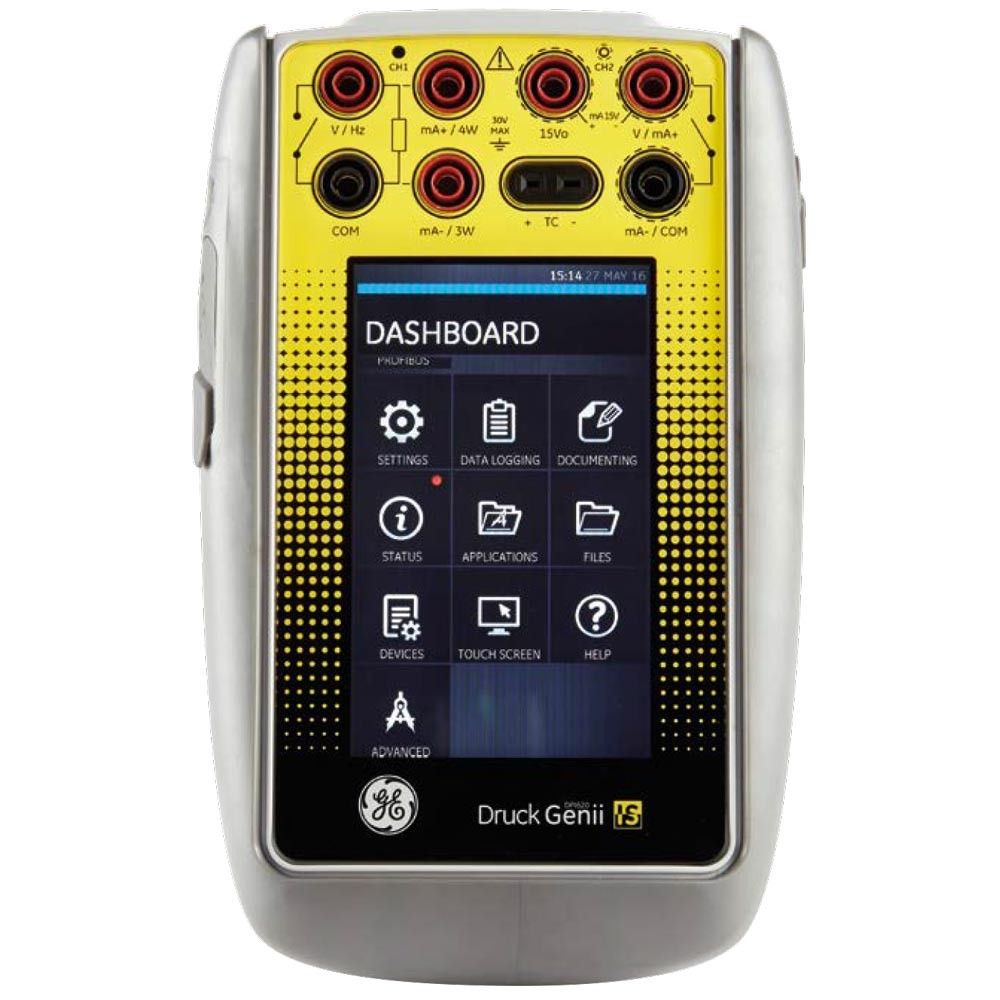

GE Druck DPI 620 GENII IS
Genii intrinsically safe advanced modular calibrator and HART/Fieldbus communicator
- 3 tools in 1 – calibrator, test meter and HART® communicator
- Foundation Fieldbus and Profibus communicator
- Easy to use including large colour screen and one touch menus
- Automates procedures, documents results and integrates with calibration software
- Best in class accuracy for pressure, electrical, temperature and frequency
- Modular: re-range in the field, configure by application, expand when needs change
- ATEX and IECEx approval for hazardous use
- Multi-function capabilities allows significant inventory reductions and simplifies training
- Temperature range extended: -10 to 50 oC
- Improved battery management – exchange in hazardous areas, no tools required
- Independent battery charge indicator
- Improved daylight readability of display
- HART®, Foundation Fieldbus and Profibus communicator options
- Complete device description libraries and free updates
- Internal mA loop power and communicator power hubs
- Internal menu selected HART® loop resistor
- Simple and user friendly touch screen interface.
- Quick launch menu applications such as DASHBOARD, TASK selection & FAVORITES
- Accuracy from 0.006%RDG 0.005%FS for mA
- Pressure accuracy from 0.005%FS
- Fully documenting – automated procedures, PASS/FAIL errors, results storage
- Interface to GE calibration software or other leading calibration software packages
- More than enough storage for a complete plant database of procedures, results and supporting documents
- Pressure Generation Stations:
- Advanced pressure generation
- 95% vacuum to 20 bar/300 psi pneumatic
- 95% vacuum to 100 bar/1500 psi pneumatic
- 0 to 1000 bar/15,000 psi hydraulic
- Replace hand pumps
>
- Pressure Measurement Modules:
- 25 mbar to 1000 bar (10 inH2O to 15000 psi)
- Accuracy from 0.005%FS
- Fully interchangeable modules with no need for set-up, calibration or tool.
- Quick-to-fit pressure adaptors and hoses – no tools or seals required
>
>
Each DPI 620G-IS-FF Includes
- rechargeable lithium ion battery P/N DPI620G-IS-BATTERY
- universal mains adaptor P/N IO620-PSU
- charger P/N DPI620-IS-CHARGER
- test leads
- calibration certificate
- quick reference guide
