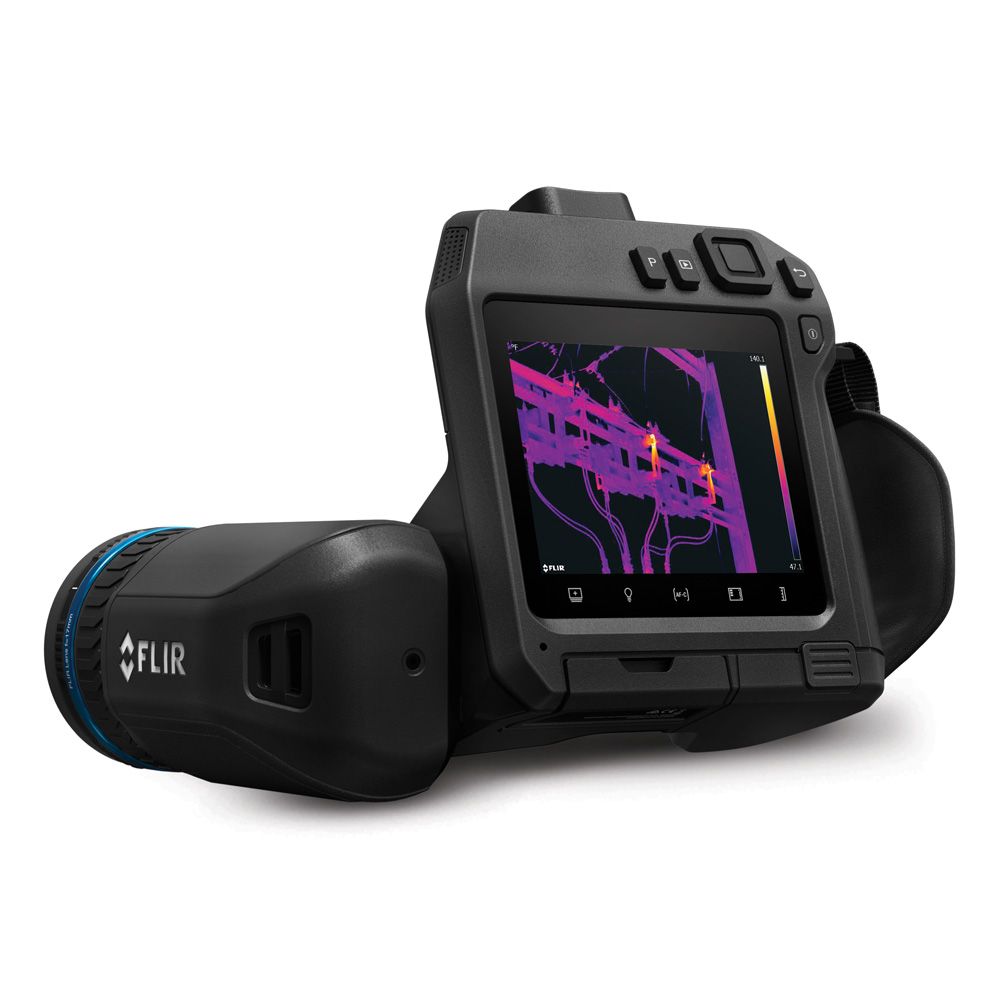

FLIR T840-24-14
Roll over image to zoom in
$13,950.00
The FLIR T840-24-14 is a high-performance thermal imaging camera engineered for professional inspections in challenging lighting conditions. Featuring a 464 × 348 IR resolution, interchangeable 24° and 14° lenses, and temperature measurement up to 1500°C (2732°F), this camera delivers unmatched flexibility and accuracy for industrial, electrical, and utility applications
FLIR T840-24-14 High-performance Thermal Camera with FLIR Thermal Studio.
The FLIR T840-24-14 is a high-performance thermal imaging camera engineered for professional inspections in challenging lighting conditions. Featuring a 464 × 348 IR resolution, interchangeable 24° and 14° lenses, and temperature measurement up to 1500°C (2732°F), this camera delivers unmatched flexibility and accuracy for industrial, electrical, and utility applications. Comes with a 3-month subscription to FLIR Thermal Studio Pro and the Route Creator Plugin for streamlined inspection workflows.
-
Browse our full range of Thermal Imaging Cameras
-
Related article: Clamp-On Power Meters: Safe and Efficient High Voltage Measurement for Industrial Applications
Key Features
-
Dual Lens Package: Includes 24° and 14° lenses for both wide-area and long-range inspections.
-
High IR Resolution: 464 × 348 pixels with UltraMax® processing for up to 645,888 effective pixels.
-
Wide Temperature Range: Measure from -20°C to 1500°C with ±2°C or ±2% accuracy.
-
Bright Outdoor Viewing: Integrated eyepiece viewfinder and 4-inch touchscreen LCD.
-
Fast & Accurate Focusing: Laser-assisted autofocus and laser distance measurement.
-
Thermal Sensitivity: <30 mK at 30°C for detecting subtle temperature differences.
-
Professional Workflow Tools: Includes FLIR Thermal Studio Pro and Route Creator Plugin (3 months).
Technical Specifications
| Parameter | Specification |
|---|---|
| IR Resolution | 464 × 348 (161,472 pixels) |
| Thermal Sensitivity / NETD | <30 mK at 30°C |
| Temperature Range | -20°C to 120°C; 0°C to 650°C; 300°C to 1500°C |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading |
| Spectral Range | 7.5 – 14.0 μm |
| Field of View | 24° lens: standard, 14° lens: long-range |
| Focus | Continuous with laser distance meter, one-shot LDM, one-shot contrast, manual |
| Display | 4″, 640 × 480 touchscreen LCD with auto-rotation |
| Zoom | 1–6x continuous digital |
| Laser Pointer | Yes |
| GPS | Automatic image geotagging |
| Video Output | DisplayPort over USB Type-C |
| Image Frequency | 30 Hz |
| Storage Media | Removable SD card (8 GB included) |
| Interfaces | USB 2.0, Bluetooth, Wi-Fi, HDMI |
| Operating Temperature | -15°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| IP Rating | IP54 |
| Dimensions (W × H × D) | 140 × 201 × 84 mm |
| Weight | 1.3 kg (2.9 lbs) without lens |
| Battery Operating Time | Approx. 4 hours |
| Country of Origin | Estonia |
Package Includes
-
FLIR T840 Thermal Camera with 24° and 14° lenses
-
Hard transport case
-
2 × Li-ion batteries
-
Battery charger & power supply
-
USB cables & adapters
-
Lens caps & straps
-
Lens cleaning cloth & neck strap
-
SD card (8 GB)
-
Instruction documentation
-
License card for FLIR Thermal Studio Pro (3 months) + Route Creator Plugin (3 months)
