- Insulation resistance measurement with test voltage up to 5kVDC
- Measurement range up to 10Tohm
- FIX mode with test voltage of 100, 250, 500, 1k, 2.5k e 5kVDC
- ADJUST mode with test voltage selectable from 100 to 5kVDC
- RAMP mode with selectable duration time and test voltage
- Selection of 3 type of ramp test
- Polarization Index (P.I.) measurement
- Dielectric Absorption Ratio (D.A.R) measurement
- DC/AC TRMS voltage up to 600V
- SMOOTH feature for stable measurement results
- GUARD test lead for surface leakage current compensation
- MX, MIN limit selectable threshold on measurements
- Automatic discharging of device under test
- Fuse protection on power supply
- LCD display with backlight and bargraph
- Internal memory for saving results
- Recall saved results at display
- RS-232 interface for PC connection
- Rechargeable internal battery
>
Each Unit Includes

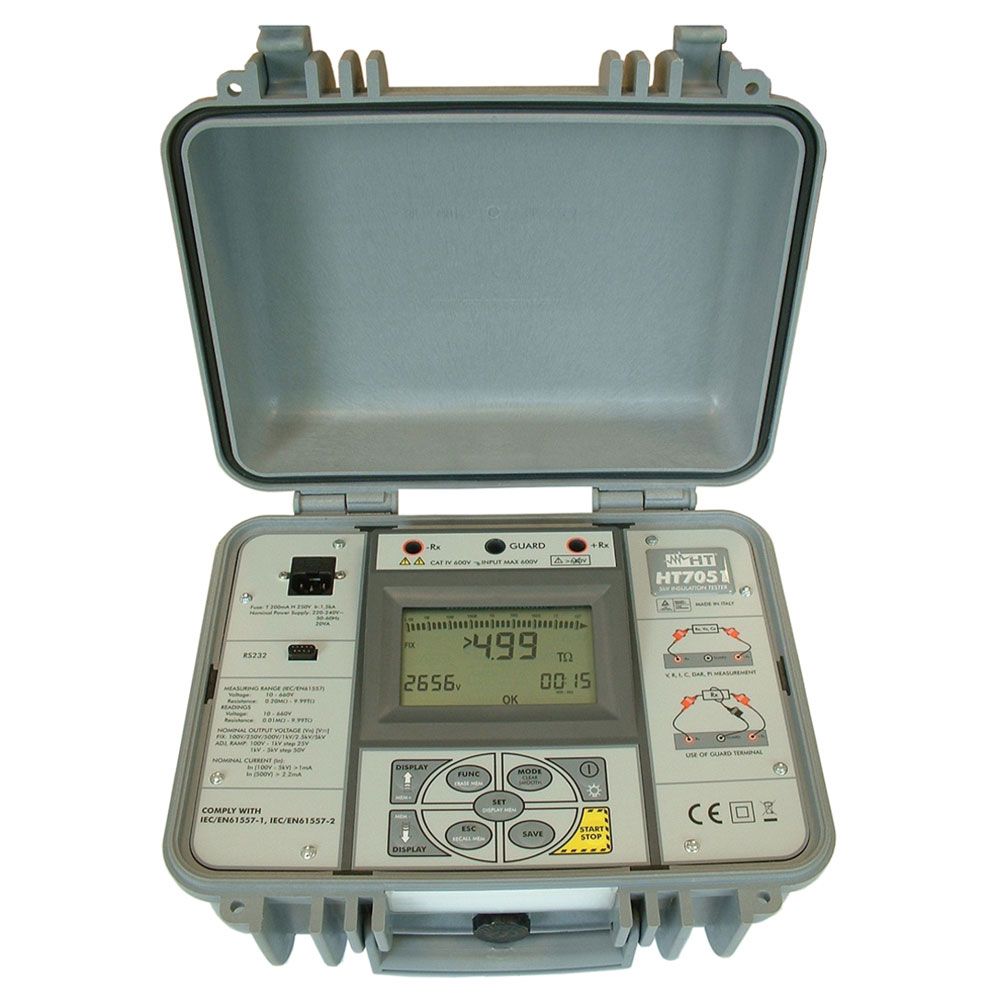

- HT 7051
- KIT14000 : Set 3 cables with alligator clips 2 cables
- C7001 : Power cord
- BORSA2000N : Carrying bag for accessories
- TOPVIEW : Windows software serial cable C232NG1
- ISO9000 calibration certificate
- User manual
