- Continuity test of protective conductors with 200mA
- Insulation Resistance measurement with 500VDC
- Trip-out time of RCDs type A, AC Standard
- Selectable test current, 30mA, 30x5mA, 100mA, 300mA
- RCD Ramp test
- Global Earth Resistance without RCD tripping
- Global Earth Resistance with 0.1Ohm resolution
- Phase sequence indication at 1 or 2 wires
- Phase coincidence indication at 1 or 2 wire
- Automatic test of global earth resistance RDC test Insulation test
- Wire mapping test on LAN cables with RJ45 connector
- DC Voltage
- AC TRMS Voltage
- AC TRMS Current with External Clamp
- AC TRMS Leakage current with external clamp (optional)
- Resistance
- Continuity test with buzzer
- Frequency with test leads
- Frequency with external clamp
- MIN/MAX/AVG functions
- PEAK function with response time 1ms
- HOLD function
- Auto Power OFF
>
Each Unit Includes

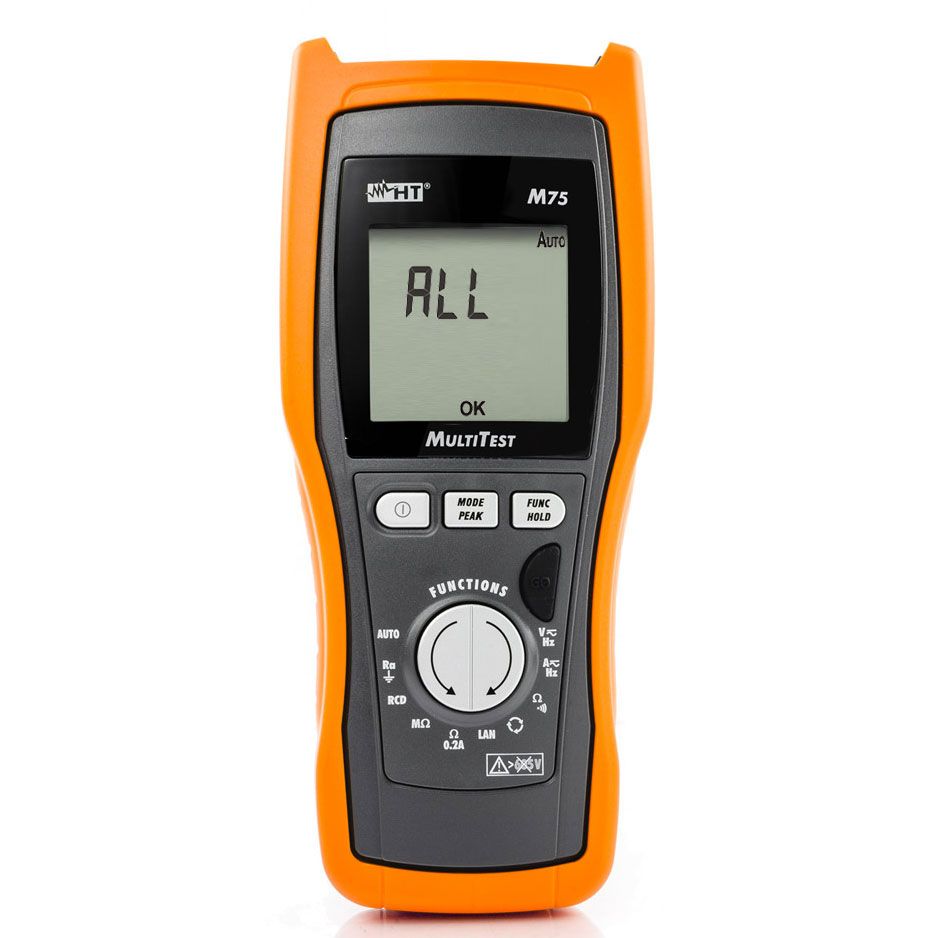

- HT 75
- KIT0075 : Set 2 cables with leads 2 alligator clips
- C2075 : Cable 2 wires with Shuko plug
- CH1 : Remote unit #1
- CH2 : Remote unit #2
- Patch cable RJ45, FTP, 20cm, 3 pcs
- HT4003 : Rigid clamp 400A AC, diameter 30mm
- BORSA75 : Carrying bag
- ISO9000 calibration certificate
- User manual on CD-ROM
- Quick reference guide
