- TRMS P-N, P-P, P-PE voltage measures (5 inputs)
- TRMS current on phases and neutral (4inputs)
- Active, reactive and apparent powers measures
- Active, reactive and apparent energies measures
- Power factors measure
- Frequency measure
- Max 251 selected parameters at the same time
- Integrated period selectable from 1s to 60min
- Harmonic analysis of voltage and current up to 49th component
- Voltage anomalies (sags, swells) with 10ms resolution
- Numerical and graphical (waveforms) visualization
- Histogram visualization of harmonic analysis
- Vectorial diagram of voltages and currents
- Voltage unbalance
- Predefined recordings of parameters
- TFT colour display with touch screen
- 15Mbytes internal memory for recordings saving
- Using of external compact flash and USB pen drives
- USB interface for PC connection
- Windows software for recordings analysis
- Rechargeable Li-Ion battery and external AC/D adapter
- Contextual help selectable on each screen
- Virtual keyboard at display
>
Each Unit Includes

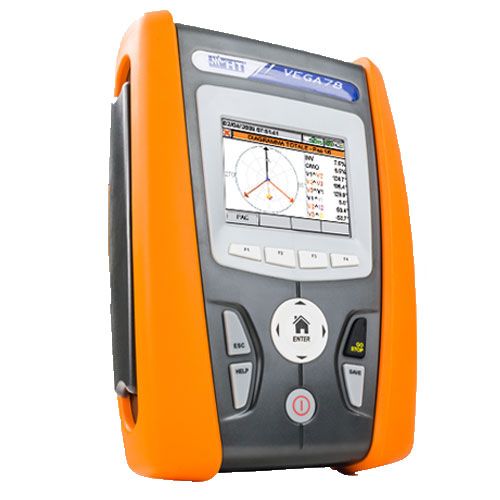

- VEGA 78
- KIT800 : Set of 5 cables 5 alligator clips
- HTFLEX33D : Flexible clamp 3000A AC, diameter 174mm, 4 pcs
- A0055 : External adapter AC/DC recharging battery
- YABAT0003HT0 : Li-ION rechargeable battery
- PT400 : Touch pen
- TOPVIEW2007 : Windows software USB cable C2007
- BORSA2051N : Soft carrying bag
- User manual on CD-ROM
- Quick reference guide
- ISO9000 calibration certificate
