Instek APS-7100: The Ultimate Programmable AC Power Source for Precision Testing

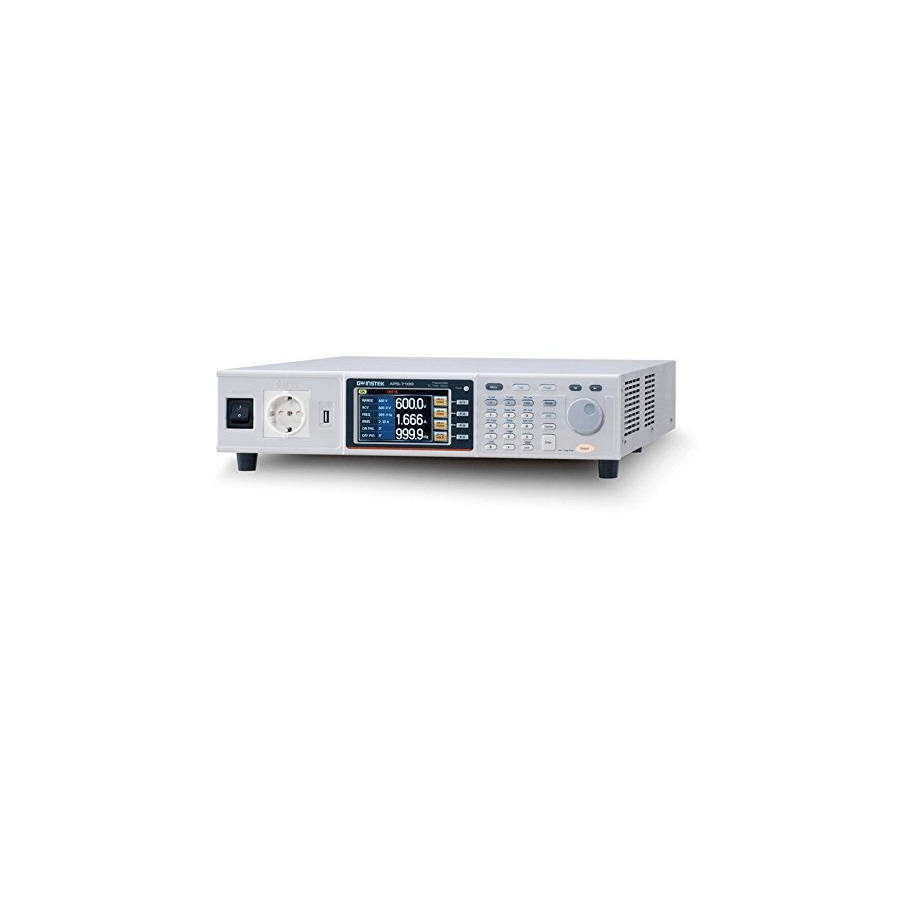

Instek APS-7100 – Programmable AC Power Source (1000 VA, 310 Vrms, 8.4 Arms).

The Instek APS-7100 from the APS-7000 Series is a programmable linear AC power supply that delivers up to 1000 VA with an output voltage of 310 Vrms and current up to 8.4 Arms. Featuring a 4.3-inch TFT LCD display and compact 2U form factor (88 mm height), it provides advanced waveform control, accurate measurement, and superior stability for laboratory and production environments.

This power source includes arbitrary waveform generation, surge/dip simulation, and sequence/program modes that enable users to reproduce real-world power conditions for testing.
The APS-7100 supports nine key measurement functions, including voltage, current, frequency, apparent power, crest factor, and power factor.

With SCPI emulation and LabVIEW driver compatibility, it easily integrates into automated test systems. The unit supports LAN and USB Host interfaces for flexible remote control and monitoring.

Designed for both R&D and production testing, the APS-7100 ensures consistent performance for evaluating AC-powered devices, such as LED drivers, power adapters, consumer electronics, and industrial components.

You can explore related power sources and measurement solutions:

• 🔗 AC Power Sources

• 🔗 Electrical Test Equipment

Key Features

• Output capacity: 1000 VA, 310 Vrms, 8.4 / 4.2 Arms

• Compact 2U case height (88 mm) with 4.3-inch TFT-LCD display

• Arbitrary waveform generation for real-world simulation

• Surge/Dip Control for simulating transient voltage changes

• Sequence, Simulate, and Program modes (10 presets each)

• Ramp Control for output voltage rise/fall time adjustment

• Multiple measurement parameters (Vrms, Irms, Ipk, PF, CF, etc.)

• Standard interfaces: USB Host, LAN

• SCPI and LabVIEW support for remote programming

• Two-year warranty

In the Box

• APS-7100 Programmable AC Power Source

• Power cord

• USB cable

• User manual

• Calibration certificate (factory calibrated)

Series Variants (APS-7000 Family)

Technical Specifications
