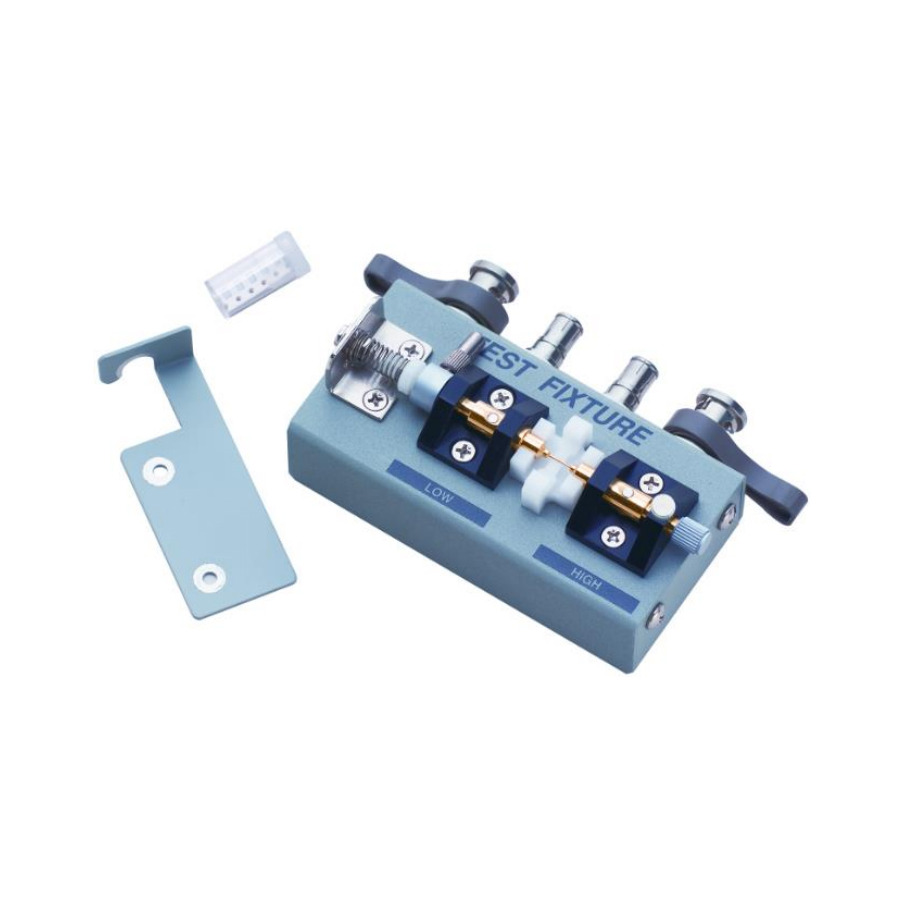

Instek LCR-15A: Precision SMD/Chip Test Fixture for LCR-6000/8200 Series
Roll over image to zoom in
$799.00
Instek LCR-15A Test Leads SMD / Chip Test Fixture: Enhance your LCR testing capabilities with our 30 MHz test fixture, compatible with LCR-6000 and LCR-8200 series. Ideal for SMD and chip component testing, ensuring accurate and reliable measurements.
Features and Specifications
Instek LCR-15A Test Leads SMD / Chip Test Fixture, 30 MHz, For LCR-6000 and LCR-8200 Series
Product Overview
The Instek LCR-15A Test Leads SMD / Chip Test Fixture is a high-performance test fixture designed for testing surface-mount devices (SMDs) and chip components. It is compatible with Instek’s LCR-6000 and LCR-8200 series LCR meters, providing accurate and reliable measurements of inductance, capacitance, and resistance.
Features
Wide frequency range: 20 Hz to 30 MHz
High accuracy: ±0.1% basic accuracy
Low test current: 100 μA to 10 mA
Test voltage: 0.5 V to 5 V
Four-terminal Kelvin connection
Compact and lightweight design
Specifications
Frequency range: 20 Hz to 30 MHz
Accuracy: ±0.1% basic accuracy
Test current: 100 μA to 10 mA
Test voltage: 0.5 V to 5 V
Dimensions: 100 mm x 60 mm x 20 mm
Weight: 100 g
What’s in the Box
LCR-15A Test Leads SMD / Chip Test Fixture
User manual
Benefits
Accurate and reliable measurements of SMDs and chip components
Wide frequency range for testing a variety of devices
Low test current and voltage for sensitive components
Four-terminal Kelvin connection for high accuracy
Compact and lightweight design for easy handling
Value to the Customer
The Instek LCR-15A Test Leads SMD / Chip Test Fixture is an essential tool for engineers and technicians who need to test SMDs and chip components. It provides accurate and reliable measurements, making it ideal for a wide range of applications, including:
Component characterization
Quality control
Failure analysis
* Research and development
Additional information
| Brand | Instek |
|---|
