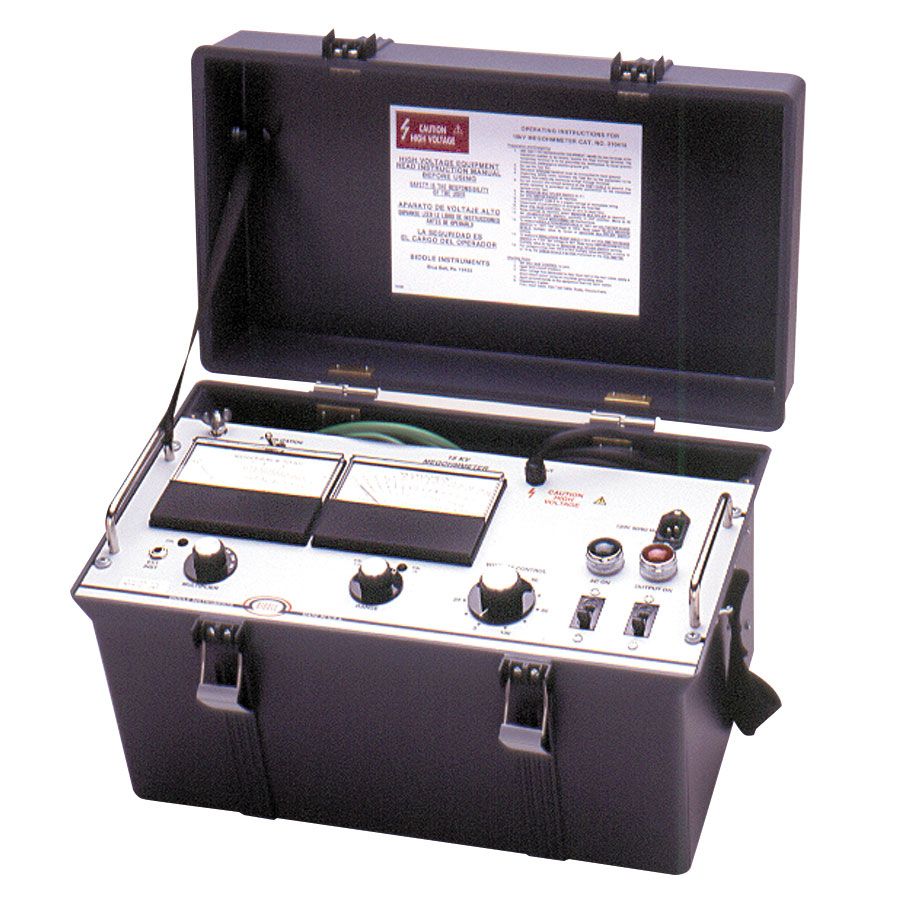

Megger 210415
Roll over image to zoom in
$5,180.00
The Megger 210415 15kV Megohmmeter is a rugged, high-voltage insulation resistance tester capable of measuring up to 300 GΩ with precision. Designed for utility, industrial, and field applications, it offers a continuously variable test voltage up to 15kV DC, redundant grounding for operator safety
The Megger 210415 15kV Megohmmeter is a rugged, high-voltage insulation resistance tester capable of measuring up to 300 GΩ with precision. Designed for utility, industrial, and field applications, it offers a continuously variable test voltage up to 15kV DC, redundant grounding for operator safety, and an internal voltage stabilizer for accurate results even in extreme conditions. Ideal for testing transformers, cables, switchgear, and other high-voltage apparatus. Browse our full range of Megohmmeters and Insulation Testers
Key Features
-
Wide Test Voltage Range: Continuously variable from 0 to 15kV DC for versatile insulation testing.
-
High Measurement Capability: Measures insulation resistance up to 300 GΩ with precision.
-
Enhanced Safety: Zero-start high-voltage interlock and redundant grounding connections.
-
Durable Field Design: Rugged construction with shielded high-voltage output cable permanently attached.
-
User-Friendly Interface: Large 114mm taut-band analog display with easy-to-read, color-coded scales.
-
Field-Ready: Internal voltage stabilizer ensures stable readings in challenging environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 120 V AC, 60 Hz |
| Test Voltage | 0–15 kV DC, negative with respect to ground |
| Output Current | 2 mA continuous (stabilizer out), 50 µA continuous at 15 kV (stabilizer in) |
| Short Circuit Current | 12 mA max |
| Insulation Resistance Range | 1.5 MΩ to 300 GΩ |
| Accuracy | ±0.031 in. at any scale marking |
| Display Type | Analog, 114 mm taut band |
| Operating Temperature | -17°C to 50°C |
| Storage Temperature | -25°C to 70°C |
| Dimensions (H × W × D) | 317 × 292 × 514 mm |
| Weight | 15.9 kg (35 lbs) |
| Power Supply | Line powered, 120 V 50/60 Hz |
| Compliance | Meets IEC/IEEE standards |
| Data Logging | Yes |
| Country of Origin | United States |
Package Includes
1 × Megger 210415 15kV Megohmmeter
1 × Ground Connection Cable, 10 ft (4702)
1 × Test Record Card (210954)
1 × Power Cord (17032)
1 × Instruction Manual (AVTM22-415JA)
