Megger BD-59090
Roll over image to zoom in
$5,390.00
The Megger BD-59090 MOM2 Micro-Ohmmeter delivers up to 240 A for precise low-resistance measurements in electrical power systems. Lightweight, portable, and equipped with Kelvin probes, it ensures accurate contact resistance testing for breakers, bus-bars, and high-current links, with Bluetooth data transfer for seamless reporting.

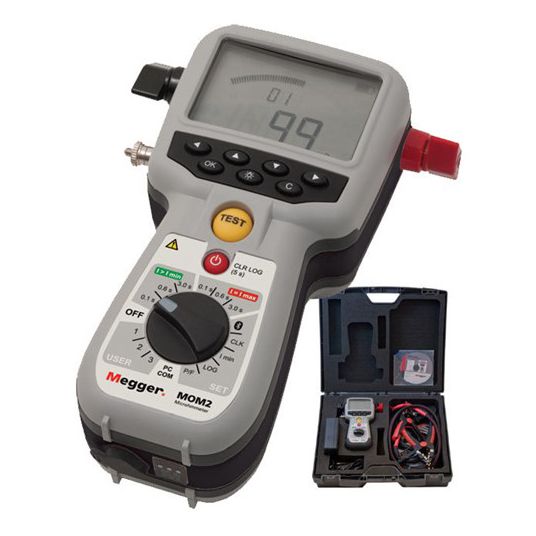

Megger BD-59090 MOM2 Micro-Ohmmeter with Kelvin Probes, 240 A

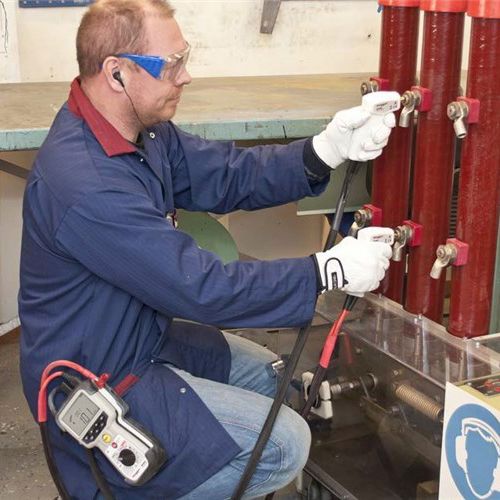

The Megger BD-59090 MOM2 is a handheld, high-current micro-ohmmeter designed for fast and accurate low-resistance measurements in field and laboratory environments. With the ability to generate up to 240 A, it is ideal for testing low, medium, and high-voltage circuit breakers, bus-bar joints, and other high-current links where precision is critical.
Using DualGround™ technology, the MOM2 allows both sides of the test object to remain grounded during measurement, ensuring operator safety and minimizing downtime. The instrument’s ultra-capacitor technology delivers powerful test currents without the bulk of a large power supply, making it extremely portable at only 1 kg (2.2 lbs).
The MOM2 automatically ranges from 1 μΩ to 1000 mΩ, stores up to 190 test results, and transfers data wirelessly via Bluetooth to a PC for analysis using the included MOM2 Win software. This makes it a versatile choice for electrical maintenance teams, utilities, and service providers.
For a complete range of similar products, visit our Micro-Ohmmeters / DLROs category. You can also explore our guide Clamp-On Power Meters: Safe and Efficient High Voltage Measurement for Industrial Applications for insights on safe measurement practices in high-voltage environments.
Technical Specifications
-
Test Current Output: Up to 240 A
-
Resistance Measurement Range: 1 μΩ to 1000 mΩ (Auto range)
-
Technology: DualGround™ and Ultra Capacitor Technology
-
Test Storage: 190 results
-
Data Transfer: Bluetooth to PC
-
Weight: 1 kg (2.2 lbs)
-
Power Supply: Battery powered, rechargeable
-
Compliance: IEEE and IEC standards
-
Country of Origin: Sweden
Key Features
-
Delivers high test currents for accurate low-resistance measurements.
-
DualGround™ technology for enhanced operator safety.
-
Compact and field-portable design for on-site use.
-
Bluetooth connectivity for easy data transfer and reporting.
-
Kelvin probe measurement for optimal accuracy in low-resistance applications.
-
Complies with international testing standards.
Package Includes
1 × MOM2 Micro-Ohmmeter
2 × 4 ft (1.3 m) Test Cables with Kelvin Probes (including one with trigger button)
1 × Transport Case
1 × Charger
1 × Rubber Holster
1 × Carrying Strap
1 × Belt Clip
1 × MOM2 Win Software
