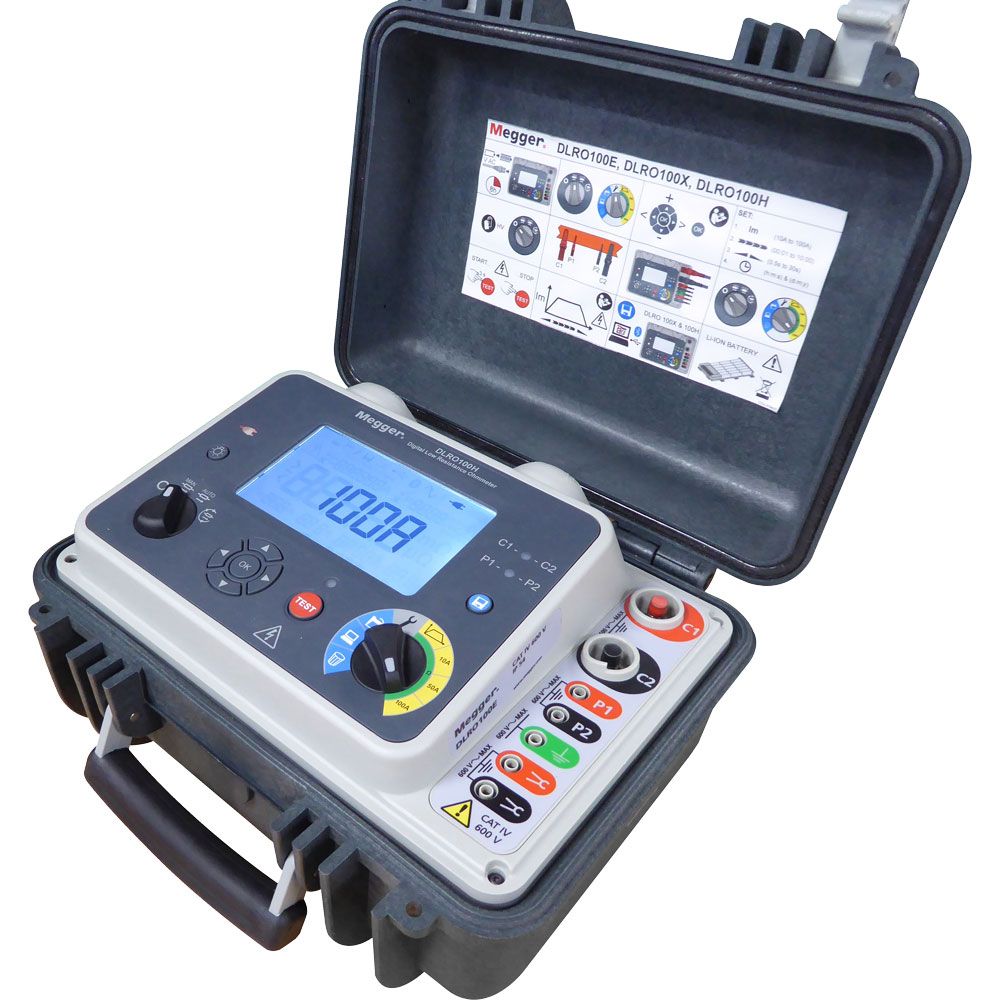

Megger DLRO100XB LG2-P3

A new addition to the comprehensive range of Megger Low Resistance Ohmmeters, the DLRO100 enables low resistance measurement, across multiple applications, in areas without access to mains power.

The integral Li-on battery supplies a constant 100A current for up to 30 minutes or up to 360 Manual/Auto tests to enable enhanced productivity in remote locations. With a focus on user safety, advanced design features ensure the safe operation of the instrument in the most adverse conditions, including a CATIV 600V safety rating in accordance with IEC61010. The rugged design, intuitive interface and IP54 (lid open) rating ensure reliability and ease of use in the most arduous of conditions.

• Mains Only
• Rugged Design for Use in Demanding Environments
• Adjustable 10-100A Output, 4 Terminal Measurement
• 0.1μΩ to 2 Ω Measurement Range
• 0.1μΩ Resolution
• Accuracy of ±0.05 μΩ Between 0.1 μΩ and 10 μΩ, ±0.2% Between 10 μΩ and 2 Ω
• CATIV 600V Safety Rating
• Battery and Mains Powered
• Battery Capacity 360 Single Tests or up to 30 Minutes Continuous 1c00A output
• Memory Storage USB Download Capability
• Adjustable Current Ramp Rates and Test Duration
• Low Ripple D.C.
• IP Rating 67 (Lid Closed) IP54 (Lid Open Battery Operation Only)
• Large, Clear LCD Display
• Time and Date Stamped Memory for Recording of Results (999 Readings)

>

Each Unit Includes

• Line Cord
• Quick Start Guide
• Certificate of Test
• Calibration Certificate
• Information CD
