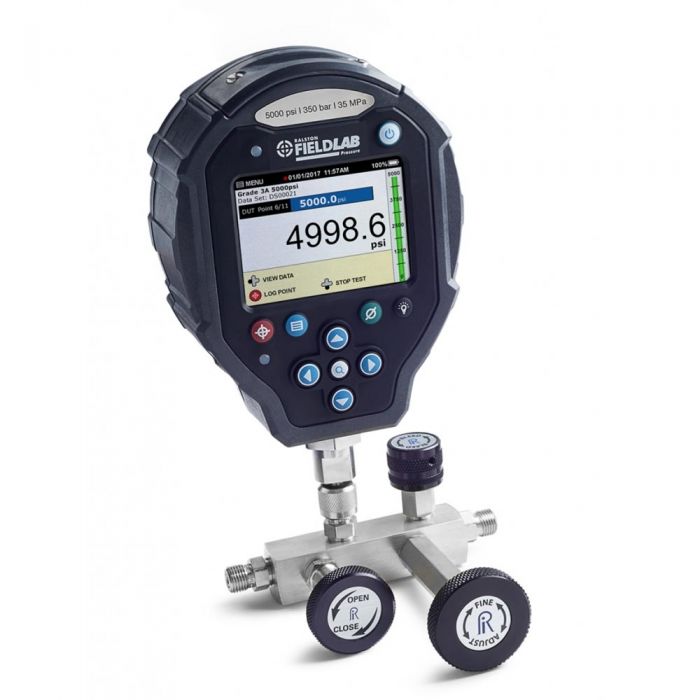

Perform static pressure calibrations using nitrogen with included calibration manifold, pressure gauge and hoses.
- 5KPSIG
- Fine adjustment piston provides precise pressure control instead of trying to make adjustments with a pressure regulator and a needle valve
- Soft-seated valves make filling and venting the system very precise
- Compact design allows the manifold, gauge adapter and hoses to fit in the included nylon bag
- Low volume Quick-test hose, gauge adapter and process connection reduce gas usage and make nitrogen cylinders last longer
- Each kit comes with the 0.25% full scale accuracy reference test gauge, hoses and pressure gauge adapter needed so that you can start calibrating within minutes
- Made in U.S.A.
>
Each Unit Includes
- Manifold QTCM Assembly (QTCM)
- Hose 1 Quick-test 6900 psi hose, S.S. hose ends, 6 ft (1.83 m) long (QSQS-HOS-6ft)
- Hose 2 Quick-test 6900 psi hose, brass hose ends, 3 ft (92 cm) long (QTQT-HOS-3ft)
- Process Connection 1 1/4 male NPT x male Quick-test, no check-valve, brass (QTHA-2MB0)
- Process Connection 2 1/4 male NPT x male Quick-test, no check-valve, brass (QTHA-2MB0)
- Gauge Pressure FieldLab, 5000 psi / 350 bar / 35 MPa, 1/4 Female Quick-test bottom connection (FLP1-GT-QF)
