Siglent DPB5700A: High-Voltage Differential Probe for Precision Measurements

Siglent DPB5700A High Voltage Differential Probe (100 MHz / 7000V)

The Siglent DPB5700A is a high-performance 100 MHz high-voltage differential probe designed for safe, accurate measurement of floating and high-potential signals. With a maximum differential voltage of 7000V (DC + Peak AC) and dual attenuation ranges (100X / 1000X), it is ideal for high-voltage power electronics testing, inverter development, motor drive research, and advanced switching power supply diagnostics.

Engineered for professional test environments, the DPB5700A offers excellent CMRR performance, fast 3.5 ns rise time, and CAT III / CAT II safety ratings, ensuring precise and safe measurement when paired with modern oscilloscopes. For applications requiring alternative voltage ranges or bandwidths, users may also consider the Siglent DPB5150A  — a versatile 1500V, 100MHz option suitable for power electronics and general test labs.

Key Features

• Bandwidth: 100 MHz

• Maximum Differential Input Voltage: 7000V (DC + Peak AC)

• Attenuation Settings: 100X / 1000X

• Rise Time: ≤3.5 ns

• Accuracy: ±2%

• CMRR: >80 dB (DC), >60 dB (100 kHz)

• Safety Ratings: 1000 V CAT III / 2300 V CAT II

• Power: USB 5V / 1A

Highlights

• Designed for high-voltage differential and floating measurements

• Works with any oscilloscope via standard BNC interface

• Overload indicator & alarm for safer testing

• Lightweight design for bench and field use

• Includes offset setting, auto-save function, and internal protection

Typical Applications

• High-voltage AC/DC power systems

• Switching power supply and resonant converter design

• IGBT/MOSFET gate drive analysis

• Power inverter and motor drive circuits

• Renewable energy systems (solar inverters, EV chargers)

• UPS and industrial automation power systems

Model Comparison (DPB5000 Series)

Package Includes

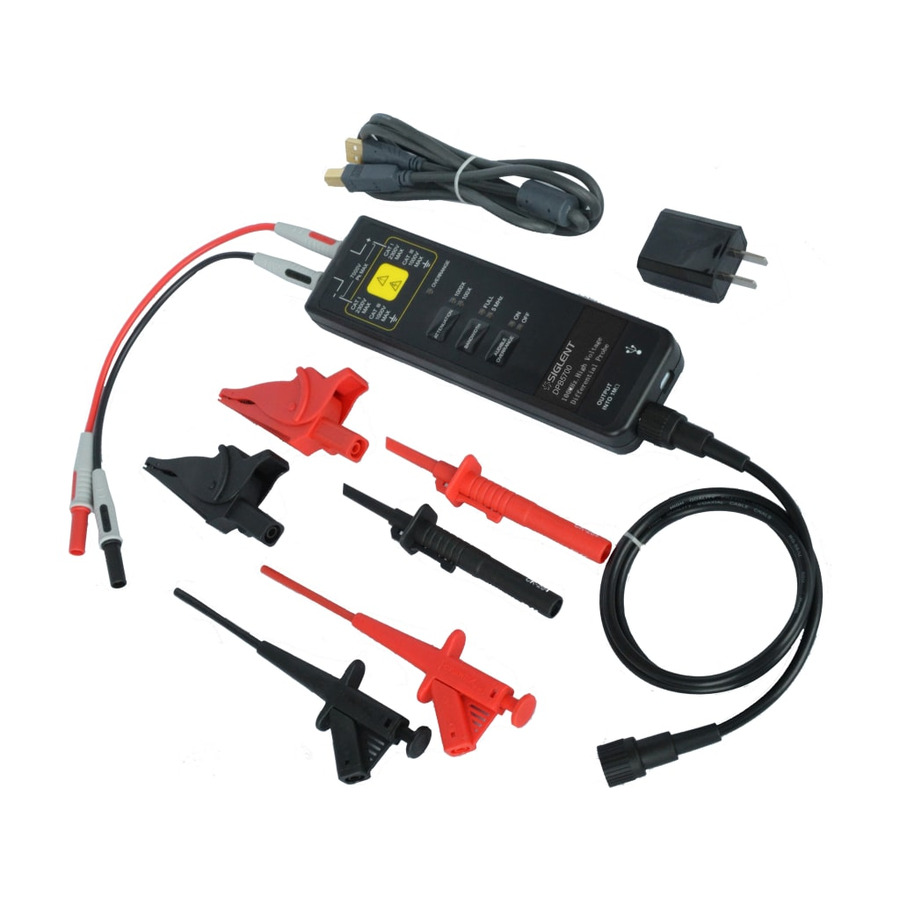

• Siglent DPB5700A differential probe

• USB 5V/1A power adapter

• Standard accessories & documentation
