Siglent SSG3032X RF Signal Generator: Unleash Precision and Versatility in RF Testing

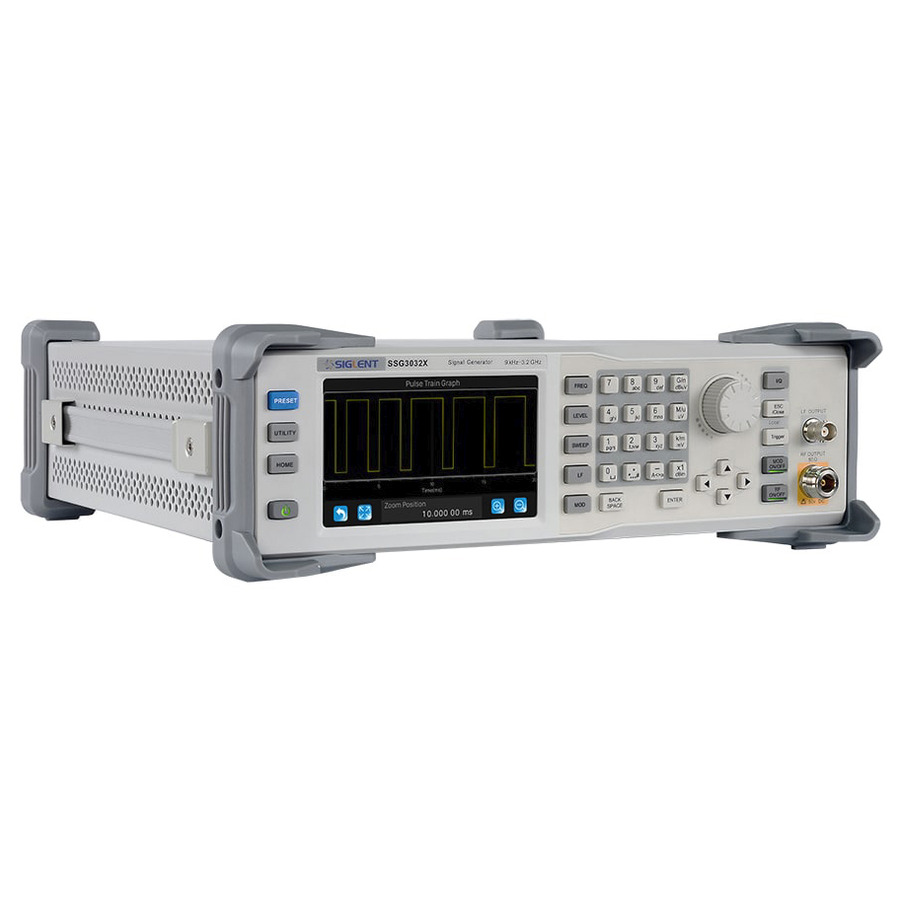

Siglent SSG3032X RF Signal Generator (9 kHz to 3.2 GHz).

The Siglent SSG3032X is a high-performance RF signal generator engineered for accurate signal generation in radio communication testing, RF circuit evaluation, radar and sensor development, and academic research. With a frequency range from 9 kHz to 3.2 GHz, it delivers precise frequency resolution down to 0.01 Hz and industry-competitive phase noise of −110 dBc/Hz at 1 GHz (20 kHz offset), ensuring reliable performance in sensitive RF applications.

This generator supports AM, FM, and PM analog modulation modes and offers fast frequency setting with typical <5 ms switching time, making it suitable for swept-frequency testing and automated measurement systems. The optional pulse train generator adds capability for radar-style and advanced pulsed RF testing.

The 5-inch capacitive touchscreen provides a modern, intuitive interface with full remote-control capability via LAN, USB, or optional GPIB. USB power-meter support allows power verification without external gear, and built-in swept and list modes provide flexibility for RF component and system characterization.

The SSG3032X is ideal for R&D labs, RF training programs, communication electronics test benches, and manufacturing lines requiring stable, repeatable signal generation performance at an accessible cost.

Key Features

• Frequency range: 9 kHz to 3.2 GHz

• 0.01 Hz frequency resolution

• −110 dBc/Hz phase noise @ 1 GHz, 20 kHz offset

• AM/FM/PM analog modulation

• Optional pulse train generator

• Frequency sweep and list mode

• ≤0.7 dB level accuracy (typical)

• 5-inch capacitive touch screen

• USB power meter support

• LAN/USB interface, optional GPIB

• Web browser remote control

• NMI/NIST-traceable calibration included

Included Accessories

• Power cord

• USB cable

• Quick start guide

• NMI-traceable calibration certificate (NIST-equivalent)

• Internal storage and USB memory support

• Note: IQ modulation and pulse generator option sold separately.

Explore related solutions in our RF signal generator lineup and compatible instruments such as spectrum analyzers, power meters, and calibration services.
